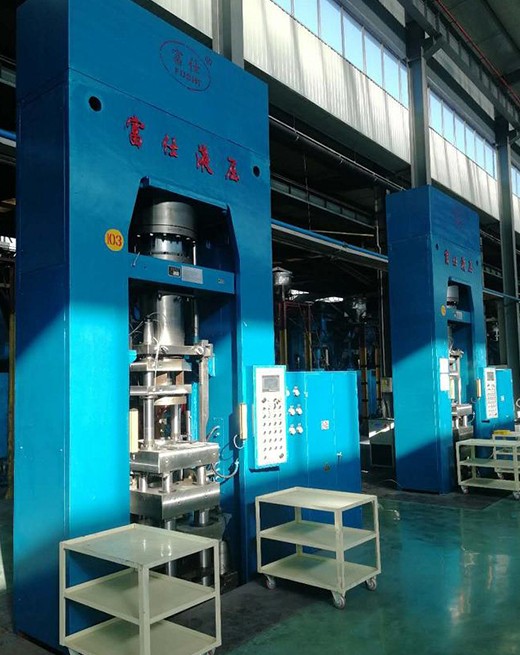

FS64K-400 shaping hydraulic press

Application: Applied to the powder metallurgy industry

Matching mold frame structure: Up 1 Down 1, Up 1 Down 2, Up 2 Down 2

Drive mode of feeding box: Female mold floating: optional configuration

CNC configuration: 1 axis (full series); 2-axis (full series); 3-axis (full series)

Overview

This series of hydraulic presses is suitable for the pressing process of plastic materials. Such as powder product molding, plastic product molding, cold (hot) extrusion metal molding, sheet metal stretching, as well as stamping, bending, flipping, correction and other processes.

The machine has an independent power mechanism and electrical system, which are centrally controlled by buttons and can achieve three working modes: adjustment, manual, and semi-automatic:

The working pressure, pressing speed, empty fast down and deceleration stroke range of the machine can be adjusted according to the process needs, and can complete three process modes: ejection process, without ejection process, and stretching process. Each process has two process actions to choose from: fixed pressure and fixed stroke. The fixed pressure forming process has pressure holding, delay, and automatic return in pressing.

Product specifications and models:FS64K-100、FS64K-160、FS64K-200、FS64K-250、FS64K-315、FS64K-400、FS64K-500、FS64K-630、FS64-800、FS64-1000、FS64-1250

Technical Parameter

FS64 (four column) and FS64K (frame) series shaping hydraulic presses
Item		Unit	100	160	200	250	315	400	500	630	800	1000	1250
Nominal force		kN	1000	1600	2000	2500	3150	4000	5000	6300	8000	10000	12500
The maximum distance point between the lower plane of the slider and the workbench		mm	Determine based on the mold frame type and loading height
Sliding block operation parameters	Maximum pressing force	kN	1000	1600	2000	2500	3150	4000	5000	6300	8000	10000	12500
	Maximum return force	kN	100	105	180	205	230	260	380	430	750	800	920
	Stroke	mm	400	400	400	400	400	400	400	400	400	450	400
	Fast down speed	mm/s	160	160	160	160	140	150	140	140	160	160	150
	Slow down speed	mm/s	15	10	12	20	12	15	10	10	15	15	15
	Proportional floating pressing speed	mm/s	10~15	10~15	8~15	10~20	8~15	8~15	8~10	8~10	10~15	8~15	8~15
	Rear pressing speed	mm/s	10	10	12	20	12	12	10	6	10	12	12
	Return speed	mm/s	150	160	170	165	120	150	120	100	140	140	120
Ejection piston operating parameters	Maximum output force	kN	500	500	700	700	1200	1200	1400	1400	1500	1500	1600
	Maximum pulling force	kN	230	230	280	280	600	600	800	800	750	750	800
	Stroke	mm	150	150	150	150	150	150	150	150	150	150	150
	Jacking speed	mm/s	30	65	35	55	35	45	50	40	55	35	45
	Floating downward speed	mm/s	10~15	10~15	8~12	10~20	8~12	8~15	6~10	6~10	10~20	8~12	8~15
	Return speed	mm/s	45	95	45	40	45	45	50	40	40	45	45
Operating parameters of the lower center oil cylinder piston	Maximum extension force	kN	60	60	80	80	120	120	190	190	190	190	190
	Maximum retraction force	kN	35	35	50	50	80	80	145	145	145	145	145
	Stroke	mm	100	100	120	120	120	120	120	120	120	120	120
Main motor power		kW	12	15	22	22	29	39	49.6	49.6	49.6*2	49.6*2	49.6*2
Operating Frequency		Times/min	4~15
High consistency of products		mm	±0.2
