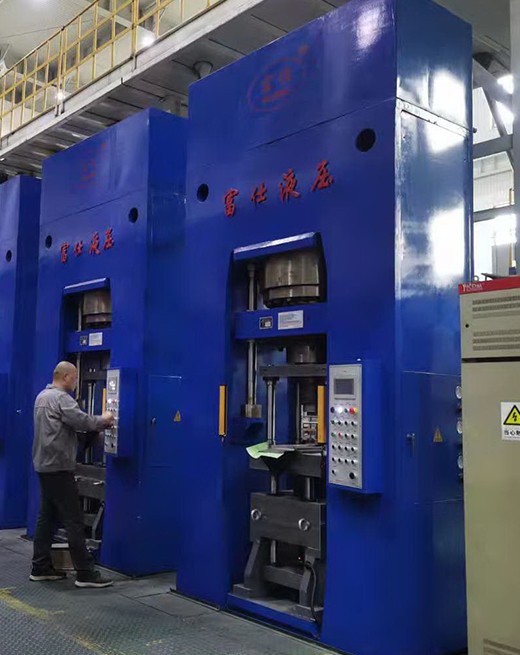

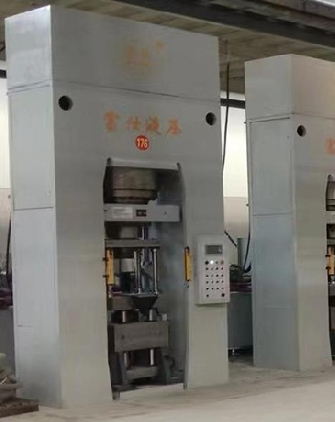

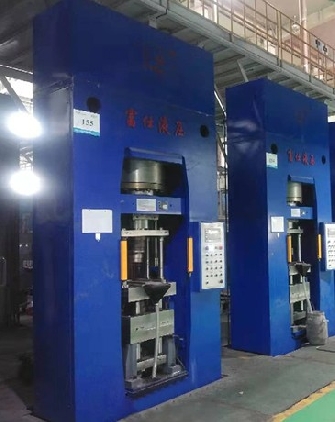

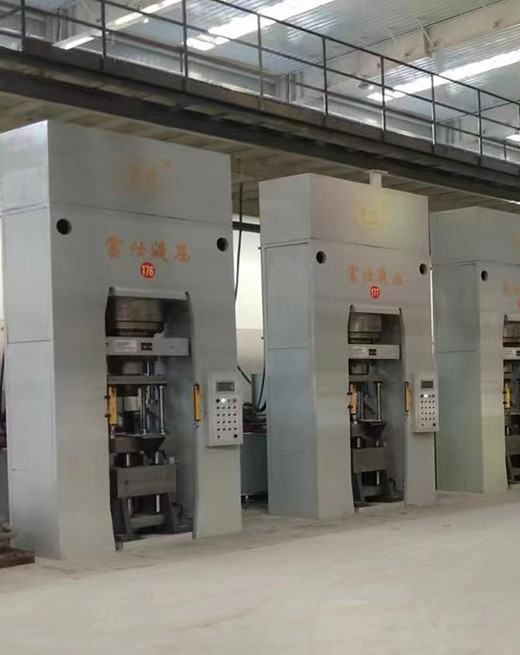

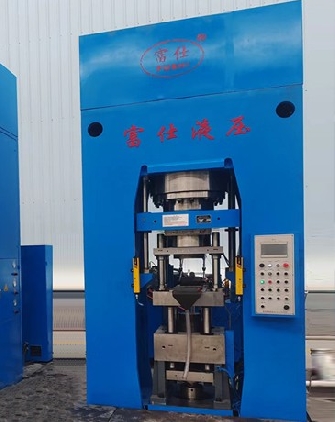

FS72ZK-630H magnetic material dry forming hydraulic press

Application: Applied to the metal magnetic powder core industry

Matching mold frame structure: Up 1 Down 1, Up 2 Down 2.5

Drive mode of feeding box: Electric servo/hydraulic servo (optional)

CNC configuration: 1 axis (full series); 2-axis (full series); 3-axis (full series)

Overview

The FS72Z series magnetic material dry forming hydraulic press is a high-efficiency specialized equipment developed and produced by our company, relying on years of service in powder metallurgy, ceramics, magnetic materials and other industries in terms of technology and process crystallization, targeting the forming characteristics of magnetic material products such as iron powder cores, ferrite, and multipole magnets.

Product specifications and models:FS72Z-100H、FS72ZK-100H、FS72Z-160H、FS72ZK-160H、FS72Z-200H、FS72ZK-200H、FS72Z-250H、FS72ZK-250H、FS72Z-315H、FS72ZK-315H、FS72Z-400H、FS72ZK-400H、FS72Z-500H、FS72ZK-500H、FS72Z-630H、FS72ZK-630H、FS72Z-800H、FS72Z-1000H、FS72Z-1250H、FS72Z-1600H、FS72Z-2000H

Technical Parameter

FS72Z (four column) and FS72ZK (frame) series magnetic material dry forming hydraulic presses
Item		Unit	100H	160H	200H	250H	315H	400H	500H	630H	800H	1000H	1250H	1600H	2000H
Nominal force		kN	1000	1600	2000	2500	3150	4000	5000	6300	8000	10000	12500	16000	20000
The maximum distance point between the lower plane of the slider and the workbench		mm	Determine based on the mold frame type and loading height
Sliding block operation parameters	Maximum pressing force	kN	1000	1600	2000	2500	3150	4000	5000	6300	8000	10000	12500	16000	20000
	Maximum return force	kN	100	105	180	205	230	260	380	430	750	800	920	1040	1160
	Stroke	mm	400	400	400	400	450	450	400	400	400	450	400	400	400
	Fast down speed	mm/s	160	160	160	160	140	150	150	150	160	170	150	170	160
	Slow down speed	mm/s	15	10	12	20	12	15	10	10	15	15	15	10	15
	Rear pressing speed	mm/s	10~15	10~15	8~15	10~20	8~15	8~15	8~10	8~10	10~15	8~15	8~15	8~10	10~15
	Rear pressing speed	mm/s	10	10	12	20	12	12	10	6	10	12	12	10	10
	Return speed	mm/s	150	160	170	165	120	150	150	150	160	150	120	140	140
Ejection piston operating parameters	Maximum output force	kN	230	230	340	340	450	450	550	650	630	630	680	1300	1300
	Maximum pulling force	kN	300	300	480	480	560	560	670	780	1000	1000	1200	1550	1550
	Stroke	mm	150	180	200	200	200	200	200	200	200	200	200	200	200
	Jacking speed	mm/s	50	50	35	55	60	60	50	60	65	65	60	60	60
	Floating downward speed	mm/s	10~15	10~15	8~12	10~20	8~12	8~15	6~10	6~10	10~20	8~12	8~15	6~10	6~10
	Return speed	mm/s	45	45	45	40	60	60	50	60	60	60	50	50	50
Operating parameters of the lower center oil cylinder piston	Maximum extension force	kN	50	50	60	60	100	100	120	190	190	190	190	250	250
	Maximum retraction force	kN	35	35	45	45	65	65	80	145	145	145	145	150	150
	Stroke	mm	100	100	100	100	120	120	120	120	120	120	120	120	120
Main motor power		kW	12	15	22	22	29	39	49.6	49.6	49.6*2	49.6*2	49.6*2	49.6*3	49.6*4
Operating Frequency		Times/min	3~6
High consistency of products		mm	±0.2
