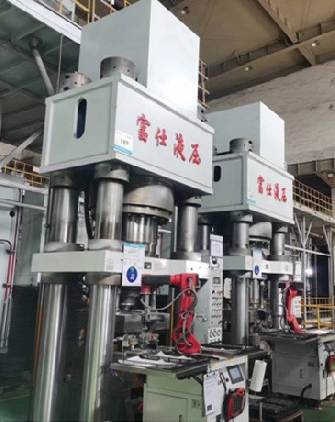

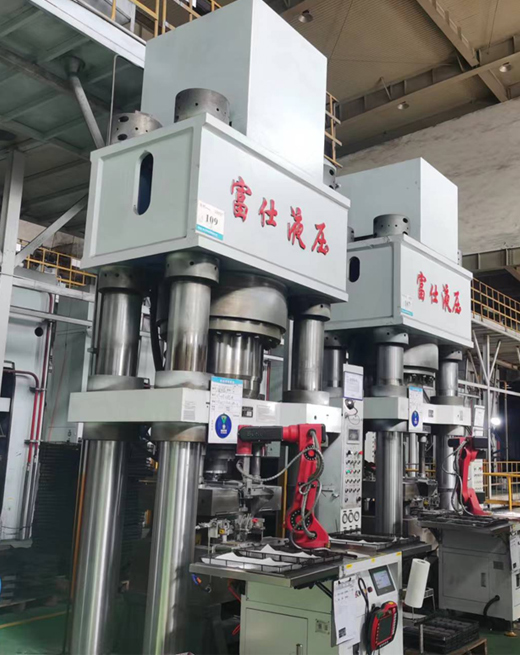

FS79Z dry powder automatic forming hydraulic press
FS79Z dry powder automatic forming hydraulic press

FS79Z dry powder automatic forming hydraulic press

Application
Used in the aluminum additive industry
Matching mold frame structure
Up 1 Down 1
Drive mode of feeding box
Hydraulic servo
CNC configuration
1 axis (full series)
Consult Return to List

Overview

The FS79Z series dry powder automatic forming hydraulic press is an equipment developed and produced by our company based on the characteristics of hard alloy dry powder pressing process. This machine inherits the dry powder forming process experience accumulated by our company's years of service in powder metallurgy, magnetic materials, electronic ceramics and other industries.
Product specifications and models:FS79Z-315、FS79ZK-315、FS79Z-500、FS79ZK-500、FS79Z-630、FS79ZK-630
x

Technical Parameter

FS79Z (four column), FS79ZK (frame) dry powder automatic forming hydraulic press

Item

Unit

100Y

160Y

200Y

315Y

500Y

630Y

Nominal force

kN

1000

1600

2000

3150

5000

6300

The maximum distance point between the lower plane of the slider and the workbench

mm

Determine based on the mold frame type and loading heigh

Sliding block operation parameters

Maximum pressing force

kN

1000

1600

2000

3150

5000

6300

Maximum return force

kN

100

160

240

300

570

640

Stroke

mm

400

400

400

450

400

400

Fast down speed

mm/s

160

160

160

140

150

150

Slow down speed

mm/s

15

10

12

12

10

10

Proportional floating pressing speed

mm/s

10~15

10~15

8~15

8~15

8~10

8~10

Rear pressing speed

mm/s

10

10

12

12

10

6

Return speed

mm/s

150

160

170

120

150

150

Ejection piston operating parameters

Maximum output force

kN

230

340

550

650

630

630

Maximum pulling force

kN

300

480

670

780

1000

1000

Stroke

mm

150

150

200

200

200

200

Jacking speed

mm/s

50

50

35

60

50

60

Floating downward speed

mm/s

10~15

10~15

8~12

8~12

6~10

6~10

Return speed

mm/s

45

45

45

60

50

60

Operating parameters of the lower center oil cylinder piston

Maximum extension force

kN

50

50

60

100

120

190

Maximum retraction force

kN

35

35

45

65

80

145

Stroke

mm

100

100

100

120

120

120

Main motor power



kW

12

15

22

29

49.6

49.6

Operating Frequency



Times/min

2~8

High consistency of products



mm

±0.2

Our company's products are constantly being improved, and any changes in parameters are subject to no further notice.
