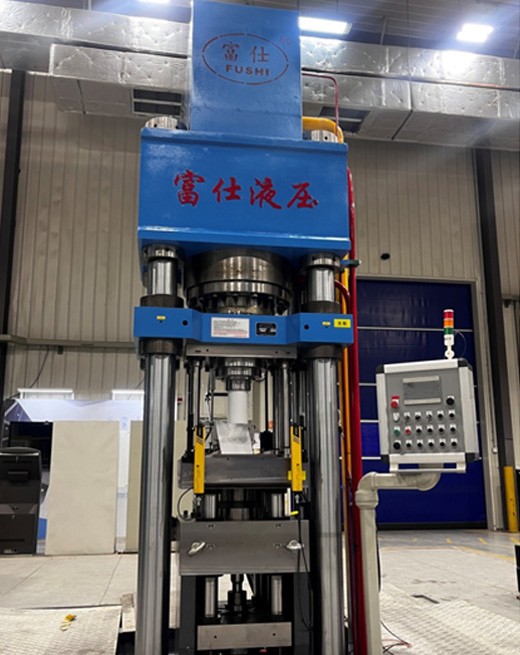

FS79Z dry powder automatic forming hydraulic press

Application: Used in the electrical materials industry

Matching mold frame structure: Up 1 Down 1, Up 1 Down 2.5

Drive mode of feeding box: Electric servo/hydraulic servo (optional)

CNC configuration: 1 axis (full series); 2-axis (full series); 3-axis (full series); 4-axis (full series)

Overview

The FS79Z series dry powder automatic forming hydraulic press is an equipment developed and produced by our company based on the characteristics of hard alloy dry powder pressing process. This machine inherits the dry powder forming process experience accumulated by our company's years of service in powder metallurgy, magnetic materials, electronic ceramics and other industries.

Product specifications and models:FS79Z-160、FS79ZK-160、FS79Z-200、FS79ZK-200、FS79Z-315、FS79ZK-315、FS79Z-500、FS79ZK-500

Technical Parameter

FS79Z (four column), FS79ZK (frame) dry powder automatic forming hydraulic press
Item/p>		Unit	100Y	160Y	200Y	315Y	500Y	630Y
Nominal force		kN	1000	1600	2000	3150	5000	6300
The maximum distance point between the lower plane of the slider and the workbench		mm	Determine based on the mold frame type and loading height
Sliding block operation parameters	Maximum pressing force	kN	1000	1600	2000	3150	5000	6300
	Maximum return force	kN	100	160	240	300	570	640
	Stroke	mm	400	400	400	450	400	400
	Fast down speed	mm/s	160	160	160	140	150	150
	Slow down speed	mm/s	15	10	12	12	10	10
	Proportional floating pressing speed	mm/s	10~15	10~15	8~15	8~15	8~10	8~10
	Rear pressing speed	mm/s	10	10	12	12	10	6
	Return speed	mm/s	150	160	170	120	150	150
Ejection piston operating parameters	Maximum output force	kN	230	340	550	650	630	630
	Maximum pulling force	kN	300	480	670	780	1000	1000
	Stroke	mm	150	150	200	200	200	200
	Jacking speed	mm/s	50	50	35	60	50	60
	Floating downward speed	mm/s	10~15	10~15	8~12	8~12	6~10	6~10
	Return speed	mm/s	45	45	45	60	50	60
Operating parameters of the lower center oil cylinder piston	Maximum extension force	kN	50	50	60	100	120	190
	Maximum retraction force	kN	35	35	45	65	80	145
	Stroke	mm	100	100	100	120	120	120
Main motor power		kW	12	15	22	29	49.6	49.6
Operating Frequency		Times/min	2~8
High consistency of products		mm	±0.2

Our company's products are constantly being improved, and any changes in parameters are subject to no further notice.
