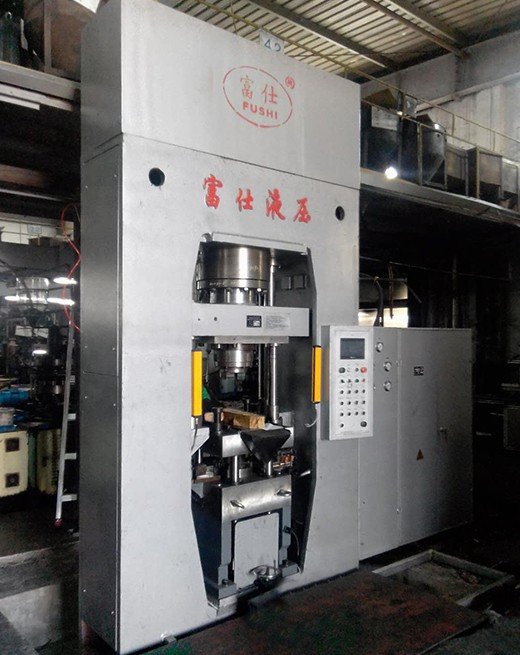

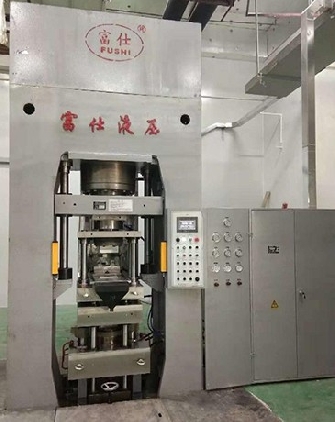

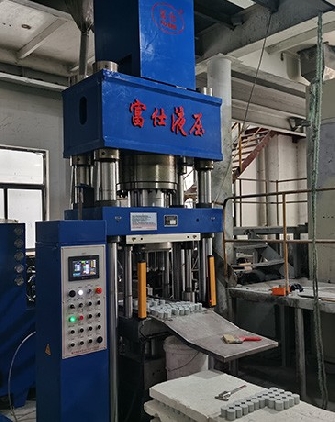

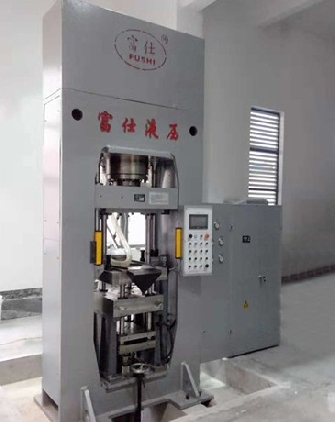

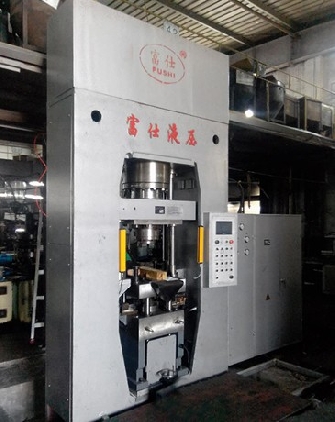

FS79ZGK-200 Ceramic Products Dry Forming Hydraulic Press

Application: Used in the ceramic industry

Matching mold frame structure: Up 1 Down 1, Up 1 Down 2, Up 2 Down 2

Drive mode of feeding box: 电动伺服/液压伺服（可选）

CNC configuration: 1 axis (full series); 2-axis (full series); 3-axis (full series); 4-axis (full series)

Overview

The FS79Z - * * * G series dry powder automatic forming hydraulic press is a professional equipment developed and produced by our company based on the characteristics of dry powder pressing and forming technology for ceramic products. This machine inherits the dry powder forming process experience accumulated by our company's years of service in powder metallurgy, magnetic materials, electronic ceramics and other industries

Product specifications and models:FS79Z-40G、FS79ZK-40G、FS79Z-63G、FS79ZK-63G、FS79Z-100G、FS79ZK-100G、FS79Z-160G、FS79ZK-160G、FS79Z-200G、FS79ZK-200G、FS79Z-250G、FS79ZK-250G、FS79Z-315G、FS79ZK-315G、FS79Z-400G、FS79ZK-400G、FS79Z-500G、FS79ZK-500G、FS79Z-630G、FS79ZK-630G

Technical Parameter

FS79Z (four column) and FS79ZK (frame) series dry powder automatic forming hydraulic presses
Item		Unit	40G	63G	100G	160G	200G	250G	315G	400G	500G	630G
Nominal force		kN	400	630	1000	1600	2000	2500	3150	4000	5000	6300
The maximum distance point between the lower plane of the slider and the workbench		mm	Determine based on the mold frame type and loading height
Sliding block operation parameters	Maximum pressing force	kN	400	630	1000	1600	2000	2500	3150	4000	5000	6300
	Maximum return force	kN	180	100	100	160	240	280	300	500	570	640
	Stroke	mm	350	400	400	400	400	400	450	450	400	400
	Fast down speed	mm/s	150	150	160	160	160	160	140	150	140	140
	Slow down speed	mm/s	15	15	15	10	12	20	12	15	10	10
	Proportional floating pressing speed	mm/s	10~15	10~15	10~15	10~15	8~15	10~20	8~15	8~15	8~10	8~10
	Rear pressing speed	mm/s	10	10	10	10	12	20	12	12	10	6
	Return speed	mm/s	140	140	150	160	170	165	120	150	120	100
Ejection piston operating parameters	Maximum output force	kN	230	230	340	340	650	650	630	630	680	6800
	Maximum pulling force	kN	300	300	480	480	780	780	1000	1000	1200	1200
	Stroke	mm	150	150	150	180	200	200	200	200	200	200
	Jacking speed	mm/s	30	65	30	65	35	55	35	45	50	40
	Floating downward speed	mm/s	10~15	10~15	10~15	10~15	8~12	10~20	8~12	8~15	6~10	6~10
	Return speed	mm/s	45	95	45	95	45	40	45	45	50	40
Operating parameters of the lower center oil cylinder piston	Maximum extension force	kN	60	60	60	60	80	80	120	120	190	190
	Maximum retraction force	kN	35	35	35	35	50	50	80	80	145	145
	Stroke	mm	100	100	100	120	120	120	150	150	150	150
Main motor power		kW	12	12	12	15	22	22	29	39	49.6	49.6
Operating Frequency		次/min	2~8
High consistency of products		mm	±0.2
