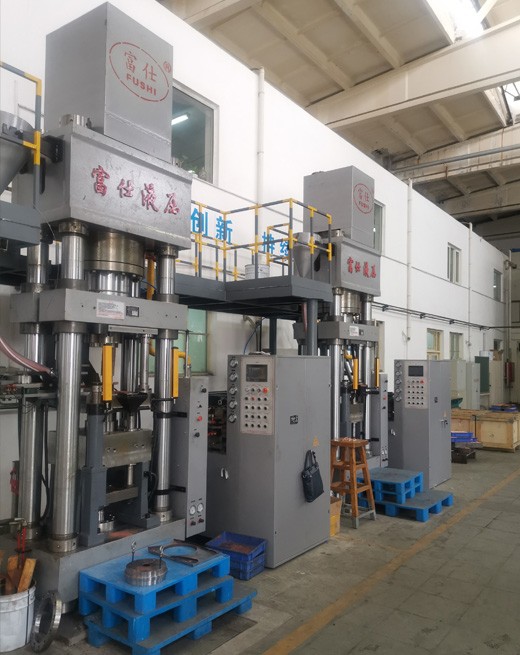

FS79Z-315F dry Powder Automatic Forming Hydraulic Press

Application: Used in the friction material industry

Matching mold frame structure: Up 1 Down 1

Drive mode of feeding box: Electric servo/hydraulic servo (optional)

CNC configuration: 1 axis (full series) 2-axis (full series) 3-axis (full series)

Overview

This series of presses is suitable for the powder metallurgy process of brake friction blocks used in the rail transit industry, engineering machinery industry, and aircraft industry. The automation level of this series of products is high, and it adopts an intelligent variable frequency servo drive control system. The product has good molding consistency, easy operation and maintenance, and is equipped with a standard mold frame, which facilitates the installation and adjustment of the mold.

Product specifications and models:FS79Z-100F、FS79ZK-100F、FS79Z-160F、FS79ZK-160F、FS79Z-200F、FS79ZK-200F、FS79Z-315F、FS79ZK-315F、FS79Z-500F、FS79ZK-500F、FS79Z-630F、FS79ZK-630F

Technical Parameter

FS79Z (four column), FS79ZK (frame) dry powder automatic forming hydraulic press
Item		Unit	100F	160F	200F	315F	500F	630F
Nominal force		kN	1000	1600	2000	3150	5000	6300
The maximum distance point between the lower plane of the slider and the workbench		mm	Determine based on the mold frame type and loading height
Sliding block operation parameters	Maximum pressing force	kN	1000	1600	2000	3150	5000	6300
	Maximum return force	kN	100	105	180	230	380	430
	Stroke	mm	400	400	400	450	400	400
	Fast down speed	mm/s	160	160	160	140	150	150
	Slow down speed	mm/s	15	10	12	12	10	10
	Proportional floating pressing speed	mm/s	10~15	10~15	8~15	8~15	8~10	8~10
	Rear pressing speed	mm/s	10	10	12	12	10	6
	Return speed	mm/s	150	160	170	120	150	150
Ejection piston operating parameters	Maximum output force	kN	230	230	340	450	550	650
	Maximum pulling force	kN	300	300	480	560	670	780
	Stroke	mm	150	180	200	200	200	200
	Jacking speed	mm/s	50	50	35	60	50	60
	Floating downward speed	mm/s	10~15	10~15	8~12	8~12	6~10	6~10
	Return speed	mm/s	45	45	45	60	50	60
Operating parameters of the lower center oil cylinder piston	Maximum extension force	kN	50	50	60	100	120	190
	Maximum retraction force	kN	35	35	45	65	80	145
	Stroke	mm	100	100	100	120	120	120
Main motor power		kW	12	15	22	29	49.6	49.6
Operating Frequency		Times/min	3~8
High consistency of products		mm	±0.2

Our company's products are constantly being improved, and any changes in parameters are subject to no further notice.

Related model

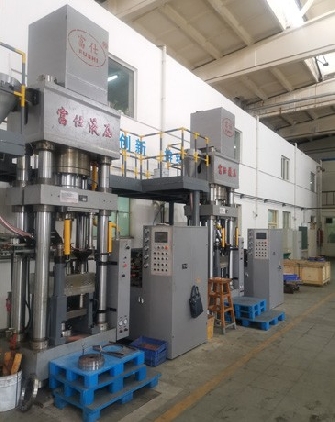

FS79Z-315F dry Powder Automatic Forming Hydraulic Press
