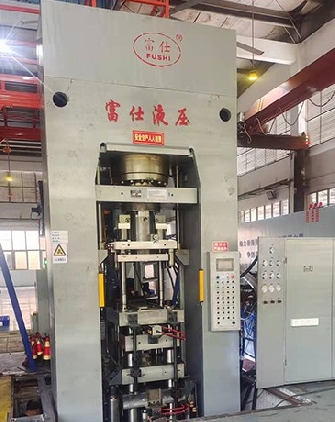

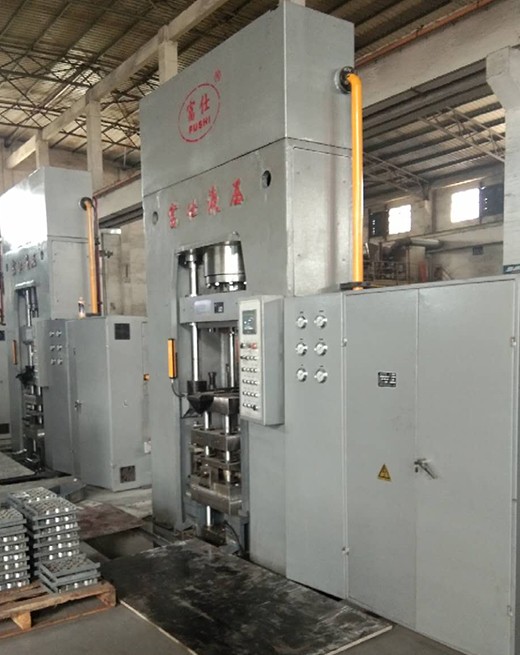

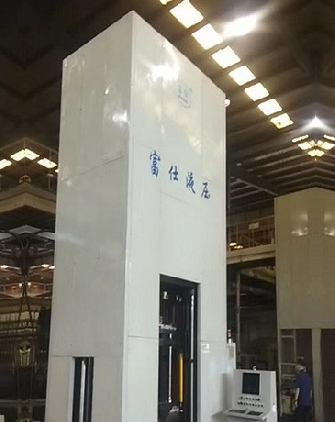

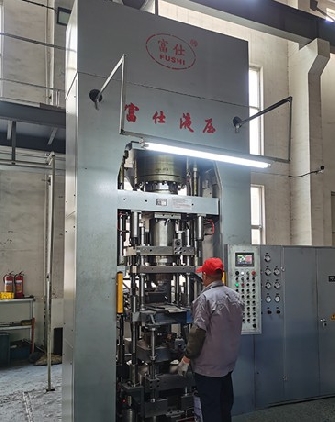

FS79ZK-200 dry Powder Automatic Forming Hydraulic Press

Application: Used in the powder metallurgy industry

Matching mold frame structure: Up 1 Down 1, Up 1 Down 2, Up 2 Down 2, Up 2 Down 2.5, Up 2 Down 3, Up 2 Down 3.5, Up 3 Down 3, Up 3 Down 3.5, Up 3 Down 3.5, Up 3 Down 4

Drive mode of feeding box: Electric servo/hydraulic servo (optional)

CNC configuration: 3-axis (full series); 6-axis (matching: a press machine with a specification of over 400 tons, with 2 upper and 3 lower mold frames); 12 shafts (matching: 630 ton or above specification press, upper 3 and lower 4 mold frames)

Overview

Product specifications and models:FS79Z-100S、FS79ZK-100S、FS79Z-160S、FS79ZK-160S、FS79Z-200S、FS79ZK-200S、FS79Z-250S、FS79ZK-250S、FS79Z-315S、FS79ZK-315S、FS79Z-400S、FS79ZK-400S、FS79Z-500S、FS79ZK-500S、FS79Z-630S、FS79ZK-630S、FS79Z-800S、FS79ZK-800S、FS79Z-1000S、FS79ZK-1000S、FS79Z-1250S、FS79Z-1500S、FS79Z-2000S

Technical Parameter

Main technical parameters of FS79Z (four column) and FS79ZK (frame) series dry powder automatic forming hydraulic presses
Item		Unit	100S	160S	200S	250S	315S	400S	500S	630S	800S	1000S	1250S	1500S	2000S
Nominal force		kN	1000	1600	2000	2500	3150	4000	5000	6300	8000	10000	12500	15000	20000
The maximum distance point between the lower plane of the slider and the workbench		mm	Determine based on the mold frame type and loading height
Sliding block operation parameters	Maximum pressing force	kN	1000	1600	2000	2500	3150	4000	5000	6300	8000	10000	12500	15000	20000
	Maximum return force	kN	100	160	240	280	300	500	570	640	750	800	920	1650	1160
	Stroke	mm	400	400	400	400	450	450	400	400	400	450	400	450	450
	Fast down speed	mm/s	160	160	160	160	140	150	140	140	160	160	150	160	160
	Slow down speed	mm/s	15	10	12	20	12	15	10	10	15	15	15	20	15
	Proportional floating pressing speed	mm/s	10~15	10~15	8~15	10~20	8~15	8~15	8~10	8~10	10~15	8~15	8~15	8~20	10~15
	Rear pressing speed	mm/s	10	10	12	20	12	12	10	6	10	12	12	10	10
	Return speed	mm/s	150	160	170	165	120	150	120	100	140	140	120	100	140
Ejection piston operating parameters	Maximum output force	kN	230	340	630	630	1000	1000	1400	2000	2000	2000	2000	2000	1500
	Maximum pulling force	kN	300	480	700	1000	1250	1250	1500	2000	2000	2000	2000	2500	3150
	Stroke	mm	150	180	200	200	200	200	200	200	200	200	200	200	200
	Jacking speed	mm/s	30	65	35	55	35	45	50	40	55	35	45	40	50
	Floating downward speed	mm/s	10~15	10~15	8~12	10~20	8~12	8~15	6~10	6~10	10~20	8~12	8~15	6~10	6~10
	Return speed	mm/s	45	95	45	40	45	45	50	40	40	45	45	40	40
Operating parameters of the lower center oil cylinder piston	Maximum extension force	kN	60	60	80	80	120	120	190	190	190	190	190	250	250
	Maximum retraction force	kN	35	35	50	50	80	80	145	145	145	145	145	150	150
	Stroke	mm	100	120	120	120	150	150	150	150	150	150	150	140	140
Main motor power		kW	12	15	22	22	29	39	49.6	49.6	49.6*2	49.6*2	49.6*2	49.6*3	49.6*4
Operating Frequency		Times/min	2~10
High consistency of products		mm	±0.2
